Manta

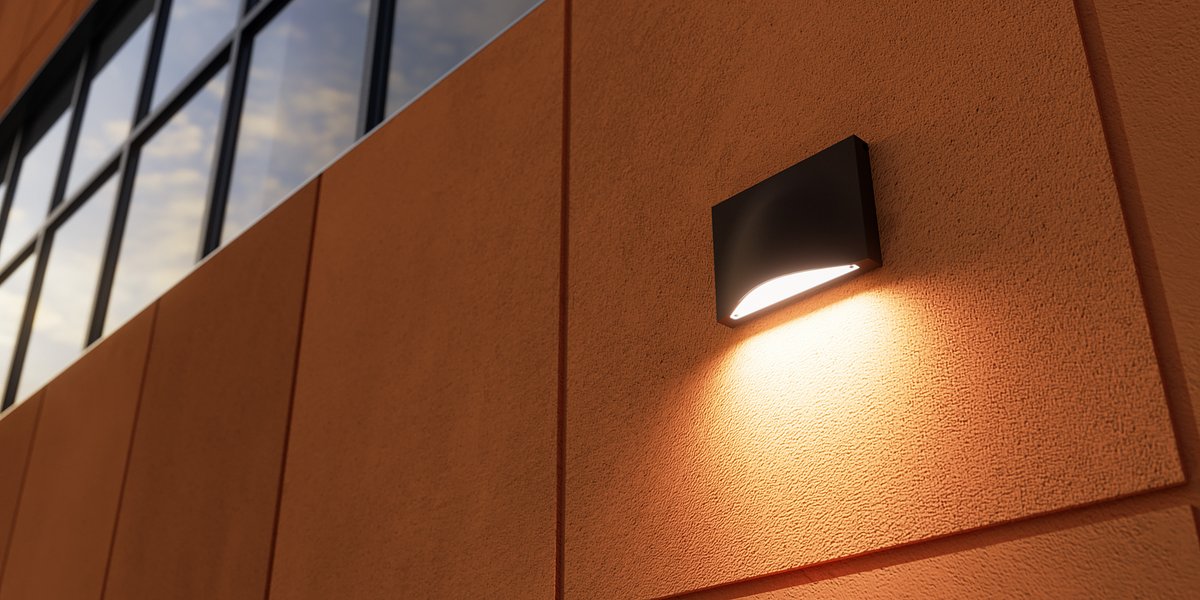

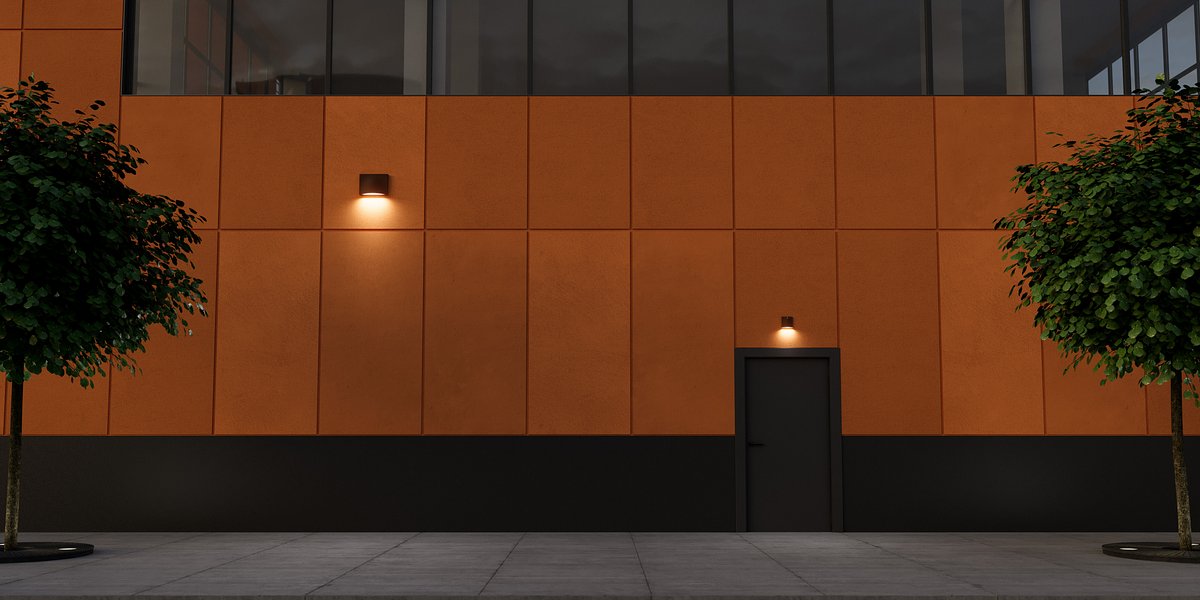

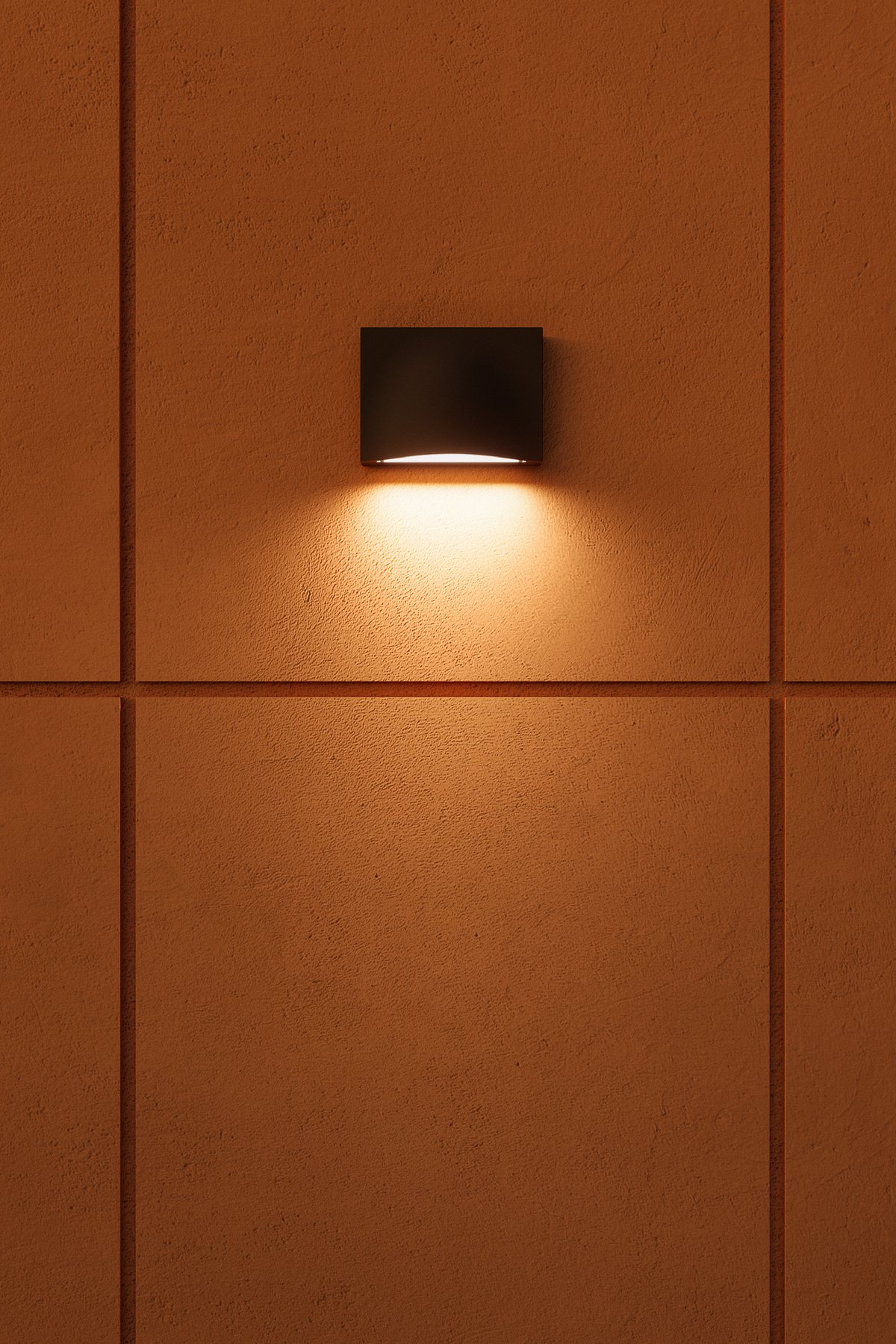

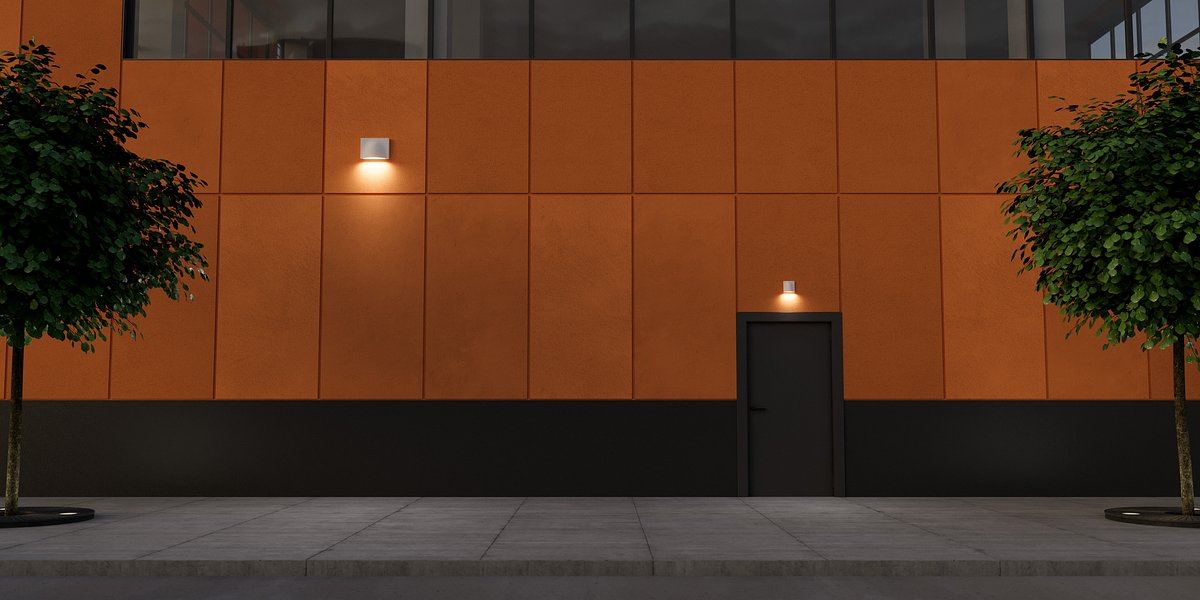

Architectural High-Performance Outdoor Emergency Wall Pack

Nature’s Elegance. Unwavering Light.

The Manta Series scales the graceful, scalloped silhouette of the Ray into a larger, more powerful wall pack design. Purpose-built for demanding outdoor applications, its softly contoured profile blends seamlessly with architectural surroundings while delivering unwavering emergency illumination, engineered to thrive outdoors. With expanded capacity and performance, the Manta Series offers tailored solutions that unite form and function in perfect motion.

A Distinct Advantage

The Manta Series incorporates a field-selectable four-setting reduced power selector, giving designers and installers the ability to fine-tune lumen output in the field. This flexibility supports application-specific performance, compliance needs, and energy efficiency.

A single model can cover multiple applications: for example, a 25W unit can be configured to operate at 20W, 15W, or 10W, reducing inventory requirements and expanding design versatility without sacrificing reliability.

The high-performance Manta is available in multiple configurations:
  • AC Operation (MAN-AC) – Purpose-built for general lighting and/or for lighting sustained by a remote AC line voltage emergency power supply, or as a normally-off luminaire powered by a remote AC supply. Available in 25W/3,200 lm, 55W/7,000 lm, 75W/9,000 lm, and 100W/13,000 lm models. Features field-selectable color temperature (3000K, 4000K, 5000K), CRI 80+
  • Self-Contained Battery Backup (MAN-EM) – Provides both general lighting and emergency operation, or emergency-only operation. Available across all AC lumen packages, 12W, 1500lm emergency backup. Specification-grade self-test and self-diagnostics come standard, ensuring performance when it matters most.
  • AC and EM shared feature – Both configurations include a field-selectable photocell for dusk-to-dawn operation.


Specification Sheet

Resources

CCT

  • 3000K
  • 4000K
  • 5000K

CRI

  • 82 CRI

Color / Finish

  • Black
  • Bronze
  • White

Dimensions

  • H: 8.25 In. L: 4.5 In. W: 11.125 In.
  • H: 9.5 In. L: 5.25 In. W: 13 In.

Distribution

  • Type II
  • Type III
  • Type IV

Efficacy

  • 120 lm/w
  • 127.3 lm/w
  • 128 lm/w
  • 130 lm/w

Emergency Lighting Options

  • Architectural Grade
  • Die Cast
  • Wet Location

Emergency Options

  • Emergency Battery Backup
  • Integral EM Battery

Lamp Source

  • LED

Listings

  • UL

Lumens

  • 3200 Lm
  • 7000 Lm
  • 9000 Lm
  • 13000 Lm

Materials

  • Die-Cast Aluminum

Mounting

  • Wall

Ratings & Compliance

  • IP65
  • NFPA 101
  • NFPA 70
  • Wet

Shape

  • Organic

Static LED Color

  • White

Voltage

  • 120-277 V

Warranty

  • 5 yr

Watts

  • 25 w
  • 55 w
  • 75 w
  • 100 w

Housing Color

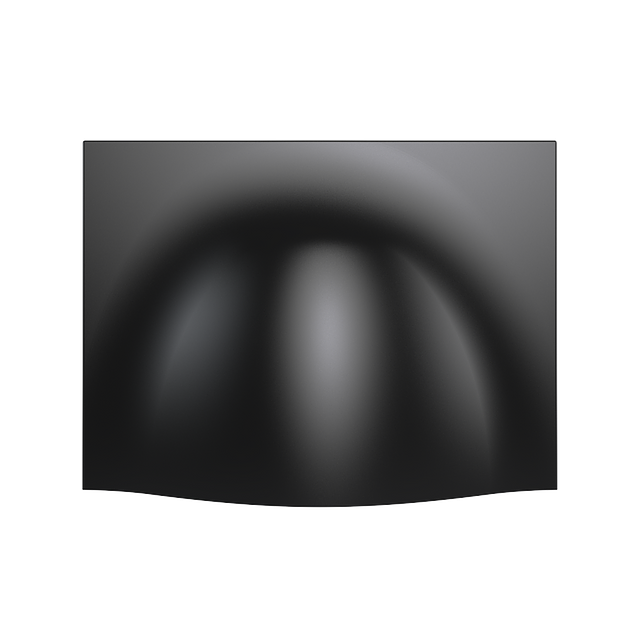

  • Black

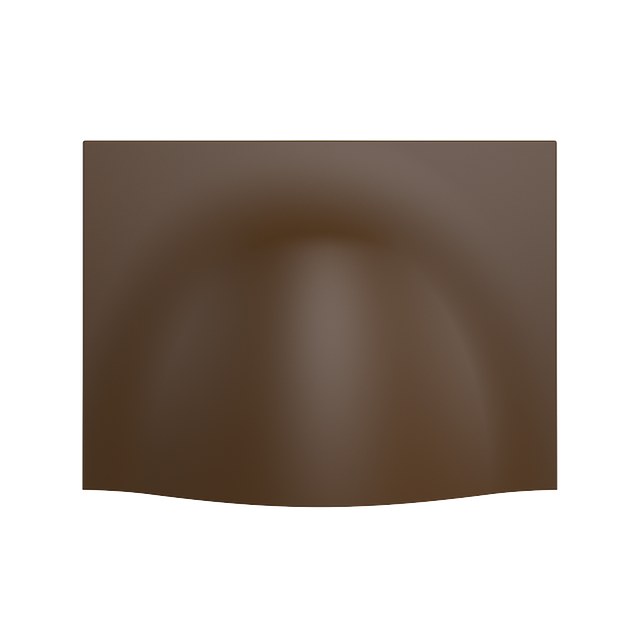

  • Bronze

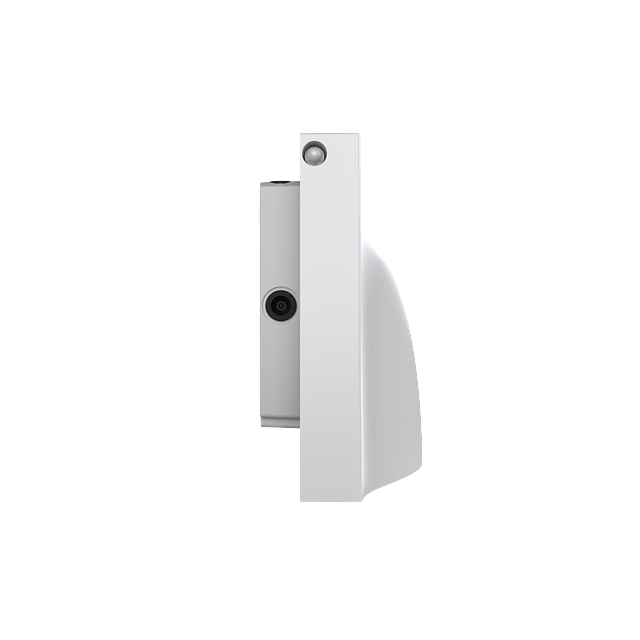

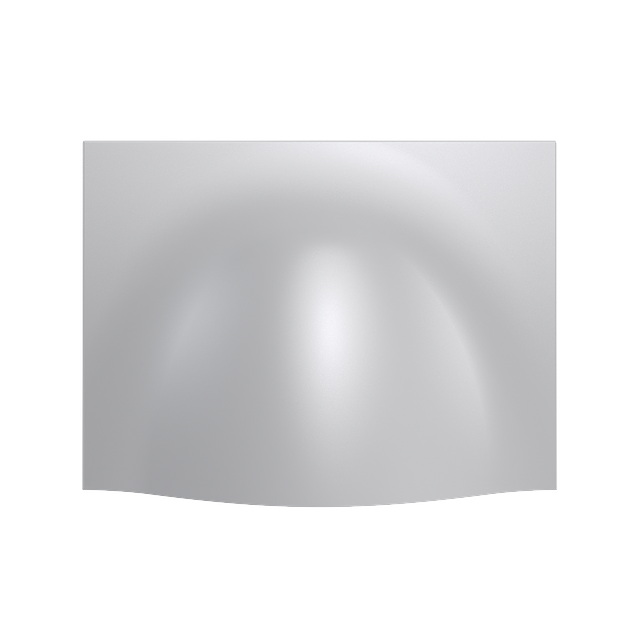

  • White

Operation

  • AC Supply
  • Emergency Battery Backup

Wattage

  • 100-Watt System
  • 25-Watt System
  • 55-Watt System
  • 75-Watt System
