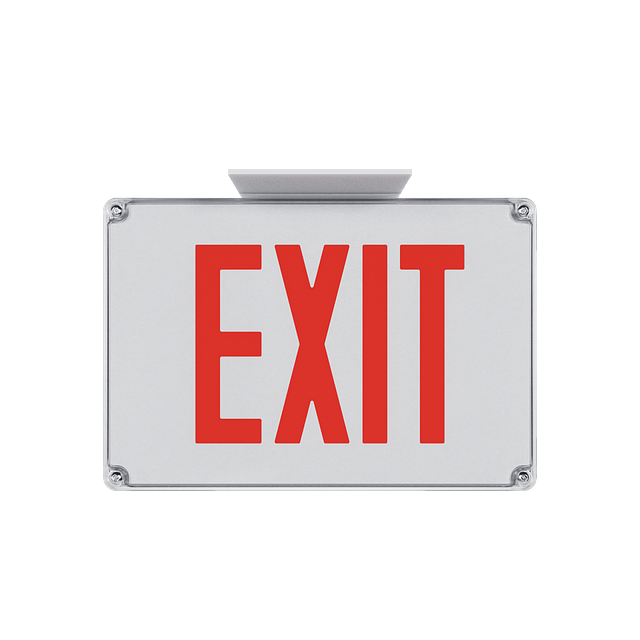

Sentry SWL
Industrial and Wet Location NEMA 4X Die-Cast LED Exit Sign
ALWAYS ON DUTY, EVEN IN THE HARSHEST WET AND COLD CONDITIONS.

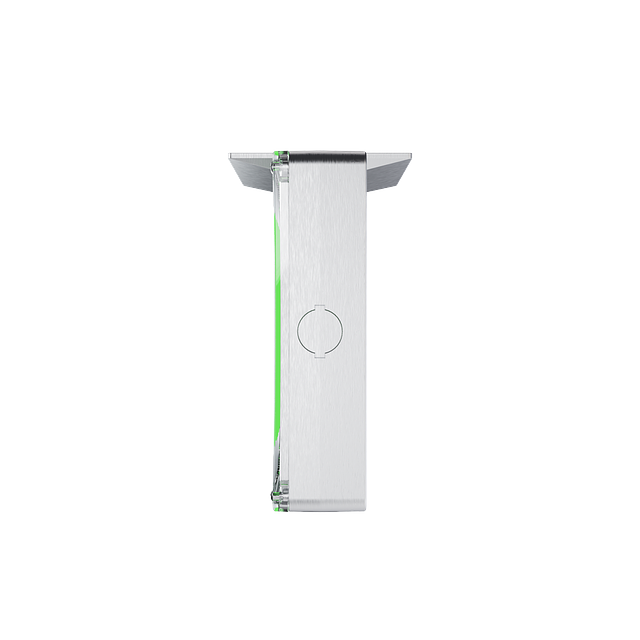

Introducing the next evolution in rugged emergency exit signage — the Sentry SWL. Replacing the trusted Sentry CDW, the SWL debuts with a sleek, ultra-compact 2.5” profile and a versatile die-cast enclosure engineered for seamless installation across wall, canopy, pendant, and stanchion mounts. Redesigned adapters and precision engineered gasketing enable fast field configuration while preserving exceptional wet-location sealing. Built for high-abuse, wet, cold and vandal-prone environments, the Sentry SWL carries a robust NEMA 4X rating — delivering unwavering performance and durability in the harshest conditions.
Engineered for reliability, the high-capacity battery delivers a standard 2+ hour runtime for emergency (EM) units, ensuring lasting performance when it matters most. For enhanced versatility, pair it with an optional indoor low-voltage remote matching Razor RZRR3 sign (-REX option).
The SD model offers even greater flexibility by supporting an optional indoor low-voltage remote matching Razor RZRR3 sign (-REX option) and, where needed, a 1.5 Watt, 3.6V remote load (-REX + -RL option). Alternatively, the SD model with just the RL option powers a 3-watt remote load at 3.6V, this configuration is compatible with the sleek Ray-RH or traditional PRW remote lampheads, ensuring powerful, reliable illumination wherever needed during an emergency.
Introducing the next evolution in rugged emergency exit signage — the Sentry SWL. Replacing the trusted Sentry CDW, the SWL debuts with a sleek, ultra-compact 2.5” profile and a versatile die-cast enclosure engineered for seamless installation across wall, canopy, pendant, and stanchion mounts. Redesigned adapters and precision engineered gasketing enable fast field configuration while preserving exceptional wet-location sealing. Built for high-abuse, wet, cold and vandal-prone environments, the Sentry SWL carries a robust NEMA 4X rating — delivering unwavering performance and durability in the harshest conditions.
Engineered for reliability, the high-capacity battery delivers a standard 2+ hour runtime for emergency (EM) units, ensuring lasting performance when it matters most. For enhanced versatility, pair it with an optional indoor low-voltage remote matching Razor RZRR3 sign (-REX option).
The SD model offers even greater flexibility by supporting an optional indoor low-voltage remote matching Razor RZRR3 sign (-REX option) and, where needed, a 1.5 Watt, 3.6V remote load (-REX + -RL option). Alternatively, the SD model with just the RL option powers a 3-watt remote load at 3.6V, this configuration is compatible with the sleek Ray-RH or traditional PRW remote lampheads, ensuring powerful, reliable illumination wherever needed during an emergency.
Resources
BAA/TAA Compliant Products
- BAA Exit Signs & Combos
Color / Finish
- Black
- Brushed Aluminum
- Custom
- White
Exit Signs & Combo Options
- BAA Compliant
- Die Cast
- Industrial Grade
- Master Capable Exit Signs
- Wet Location
Listings
- UL
Materials
- Die-Cast Aluminum
Mounting
- Ceiling
- Surface
- Surface / Canopy
Ratings & Compliance
- Buy American Act (BAA)
- Damp
- NEMA 4X
- NFPA 101
- NFPA 70
- Title 20
- Vandal Resistant
- Wet
Voltage
- 120 V
- 277 V
Watts
- 3.72 w
- 4.1 w
- 4.56 w
- 7 w
Face Color
- Black

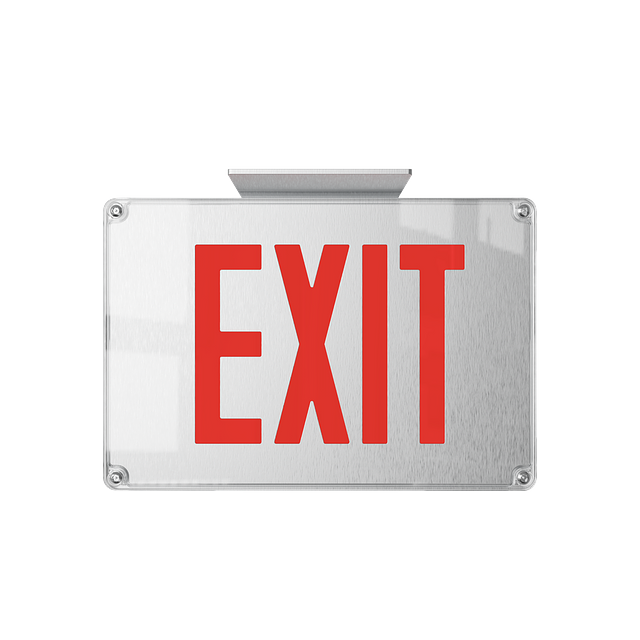

- Brushed Aluminum
- Custom
- White
Housing Color
- Black
- Custom
- White
Legend Color

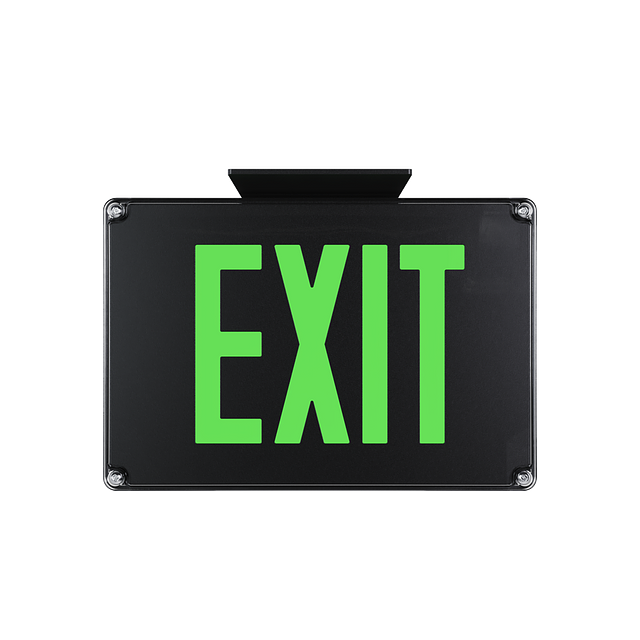

- Green
- Red
Mounting Type
- Back Mount No Canopy
- Conduit Entry
- Stanchion Mount
- Universal Canopy Mounting Kit
Number of Faces
- Double
- Single
- Universal
Operation
- AC Supply
- Emergency Battery Backup
