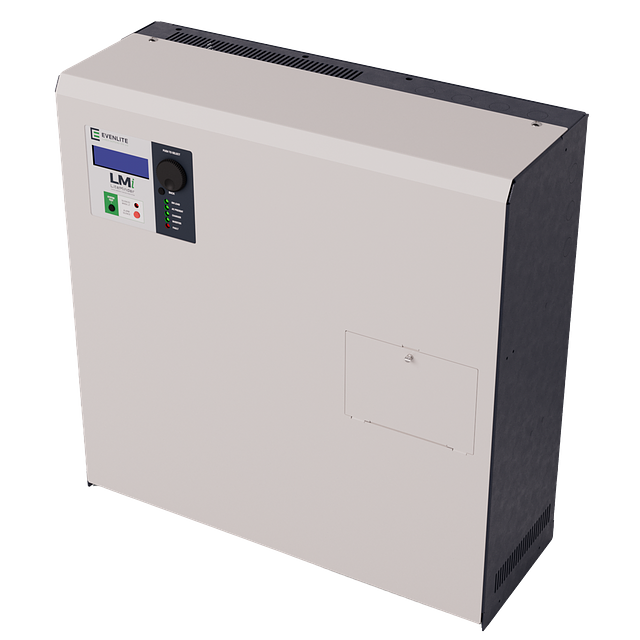

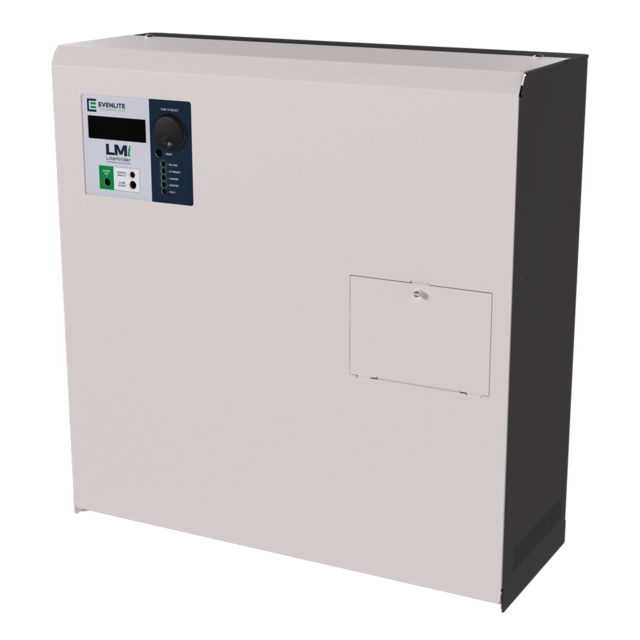

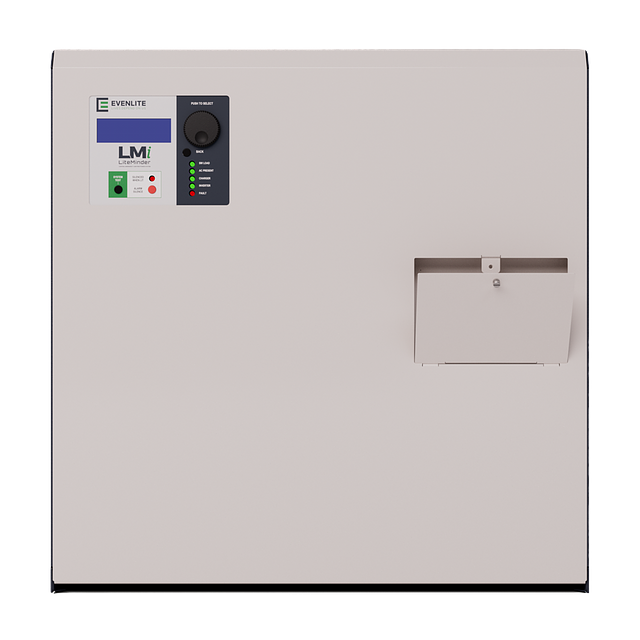

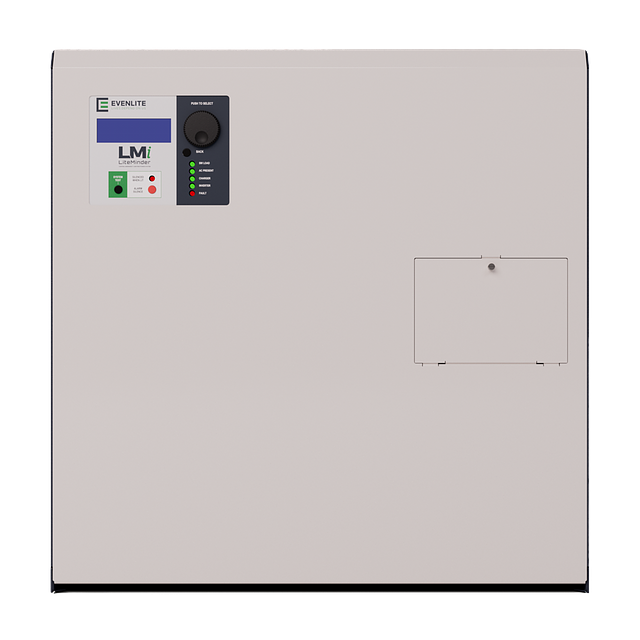

LiteMinder LMi

New Product

Central Emergency Lighting Power Inverter System

SMALLER. SAFER. SMARTER.
From research-driven innovation comes a new standard in life safety power.

Driven by deep research and purpose-built engineering, the LiteMinder® LMi sets a new standard in life safety power systems. As the first dedicated emergency lighting central inverter engineered from the ground up around a proprietary Lithium Iron Phosphate (LiFePO4) battery platform and fully integrated Battery Management System (BMS), the LMi brings the inherent safety, longevity, and performance advantages of LiFePO4 technology to emergency lighting in an entirely new way.

At its core, inherently stable LiFePO4 chemistry is combined with intelligent BMS control that continuously monitors, balances, and protects individual cells. This integrated battery architecture optimizes safety, performance, and battery life while providing the stability and predictability demanded of critical life safety systems.

The LMi’s compact, high-density design significantly reduces system size while maximizing installation flexibility and valuable electrical room space. Combined with an extended service life of 10–15 years and a wide operating temperature range, the LMi delivers long-term resilience with reduced maintenance and lower total cost of ownership.

Purpose-built for reliability when it matters most, the LiteMinder® LMi sets a new benchmark for modern life safety systems.

Specification Sheet

Resources

Share Links
Download

Dimensions

  • L: 8 In. W: 22 In. H: 22.3 In.

Emergency Options

  • Inverter

Inverter Options

  • BAA Compliant
  • Mini Inverter Systems

Listings

  • cULus

Materials

  • Steel

Ratings & Compliance

  • Buy American Act (BAA)
  • Title 20

Voltage

  • 120 V
  • 277 V

Warranty

  • 7 yr

Watts

  • 375
  • 500
  • 600
  • 750
  • 900
  • 1000
  • 1200

Weight

  • 95
  • 98
  • 105

Battery Type

  • Lithium LiFePO4

Output Breaker Configuration

  • 20A Independently Switched
  • 20A Normally On
  • 20A Switched/Normally Off
  • Terminal Block Output

VA Rating

  • 1000 Watts/VA
  • 1200 Watts/VA
  • 500 Watts/VA
  • 600 Watts/VA
  • 750 Watts/VA
  • 900 Watts/VA
